| Product Name: | TNG2DWSS2001 | PN: | 03033FNF |
|---|---|---|---|
| Product Line: | OSN9800 | Condition: | ref |
| Basic Functions: | - Enables optical layer-level service scheduling for multiple wavelengths. - Upstream Wavelength Division: Routes arbitrary wavelength combinations from any direction through ports AM1~AM20 to the OUT port. - Downstream Wavelength Division: Receive | WDM Specifications: | Supports DWDM technology standards. |
| Spectrum Applications: | - Supports ultra-wide C-band. - Supports Flexible Grid wavelength signals with channel spacing of n × slice (minimum slice: 6.25GHz, n = 6~64; single-channel support: 37.5GHz~400GHz adjustable). | Gain Locking Technology: | Not supported. |
| Online Optical Performance Monitoring: | Provides an online monitoring optical port to output a small amount of optical signal to a spectrum analyzer or monitoring board for non-service-disruptive monitoring of the composite optical signal’s spectrum and performance. |

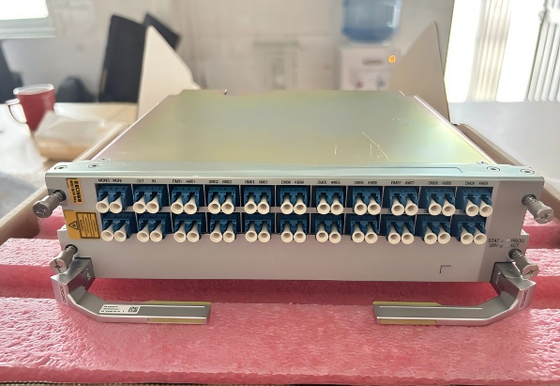

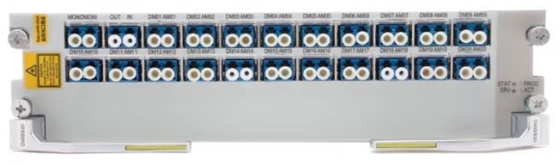

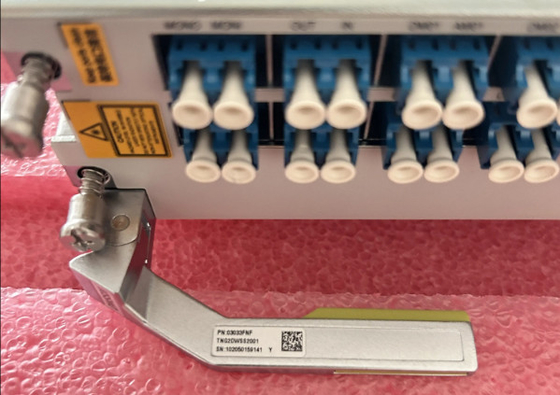

HW OSN9800 03033FNF TNG2DWSS2001 carte de multiplexage et de démultiplexage sélectif à longueur d'onde flexible à deux ports de 20 ports ((Super C_band,190.65THz~196.675THz37.5GHz~400GHz) ((10 dimensions incluses, Extension du RTU
